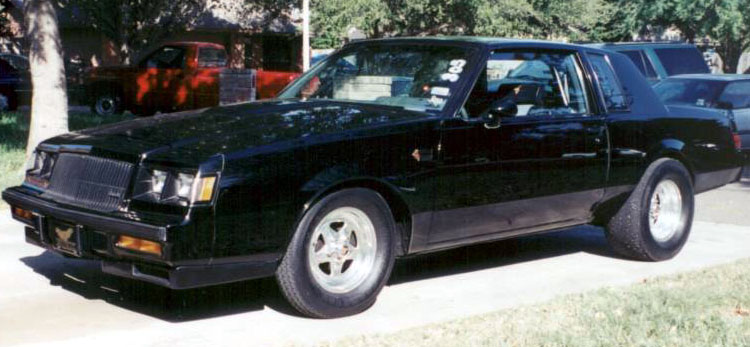

Featured Car - Jay Villalon's 1986 Grand National
Jay's car has a little "extra" squeeze ..

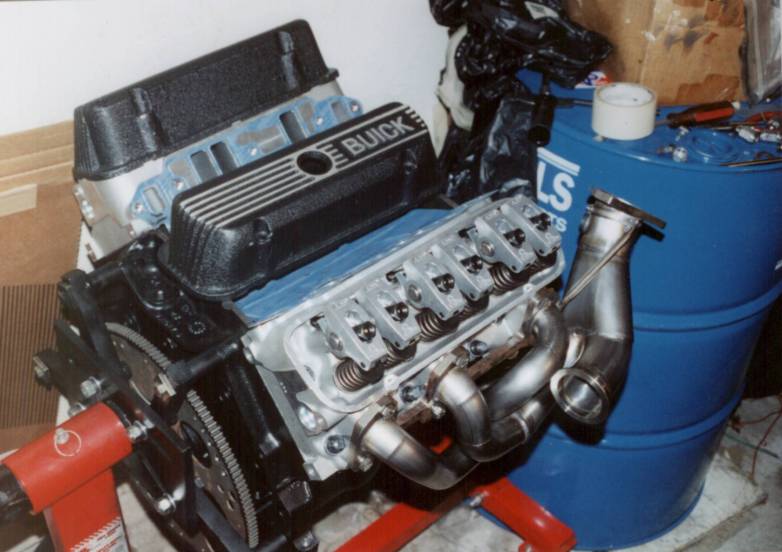

The heart of the beast ...
Jay didn't feel that his nice solid build up was quite exciting enough, so he added a 150 shot of "giggle juice" to help motivate it! He uses it out of the hole to get a good launch and then it shuts off at 12 psi of boost. The latest run of 10.80 was made with a constant 75 HP shot that supplemented the 25 psi of boost...

Features:

Motor

  • 1986 Buick LC2 231 cid bored .020 inch
  • Billet main caps and engine girdle
  • Stock rods and crank
  • JE Pistons that set the compression ratio at 8.25:1
  • Competition Cams Hydraulic 21/8218
  • Pedestal Mount
  • Champion Aluminum GN 1 14 bolt heads
  • Speed Pro Bank to Bank by Felpro
  • Magnecor 10mm wires
  • Autolite 103 plugs
  • Bendix 72 lb./hr. injectors
  • Quad Air Dual XP
  • 14 inch KN Filter with ram air duct
  • Precision Stealth turbo with .82 exhaust housing
  • Eastern Performance Front Mount
  • BGC/Champion intake port matched
  • 70 mm Kenne Bell Throttle Body
  • ATR Stainless Steel Headers and 3 inch down pipe
  • Turbonetics Racegate
  • ATR 3 inch single shot exhuast with dump

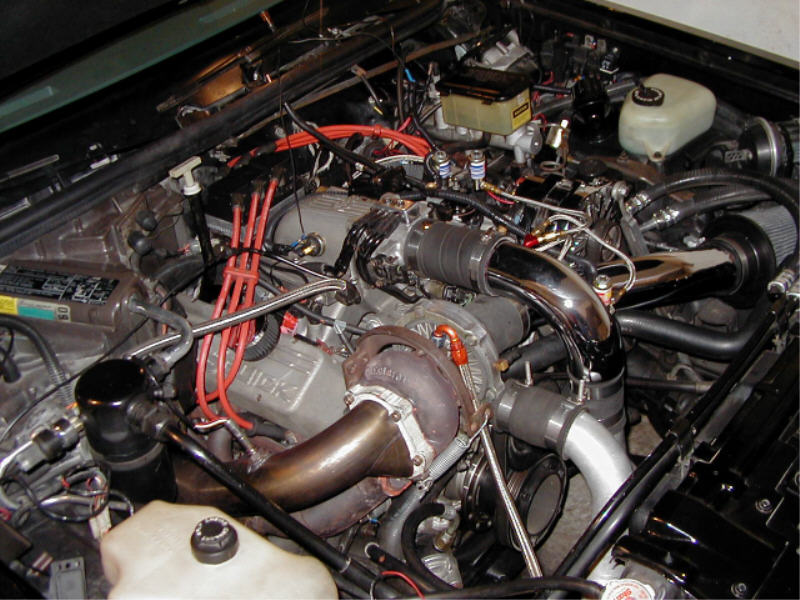

The powerplant in place .. with NOS ... a little dab will do ya!
Transmission/Rear End/Suspension

  • 200-4R transmission built by Carlos Villalon Sr.
  • Art Carr 9 1/2 Inch Non Lockup 4000 stall
  • Front suspension
    • Eibach springs
    • KYB shocks
  • Rear suspension
    • Kirban springs
    • Southside lower control arms
    • air bags
    • KYB shocks
  • Weld Prostars, Firestone 28 1/2 x 10 1/2 slicks (strip) and 16 inch GTA wheels with BFG Comp ZR's for the street
  • 28-Spline Moser axles
  • Auburn Posi traction with 3.42 gears
  • Line Lock

Body/Interior

  • GM Black paint, painted by Bert Ogden Buick
  • 6 point BGC Roll Bar

P

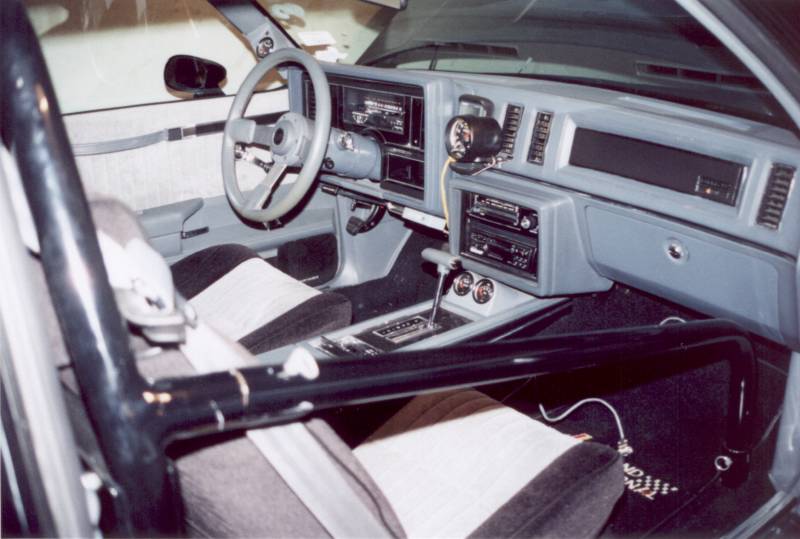

A shot of the cockpit ...
erformance

  • 1.47 60 foot time
  • 10.801 @ 126.573 mph wiht a 75 shot of NOS and 25 psi of boost
Jay Villalon
