Featured Car - Allan Gorneault's 1986 T-Type



Show car quality, race car results!

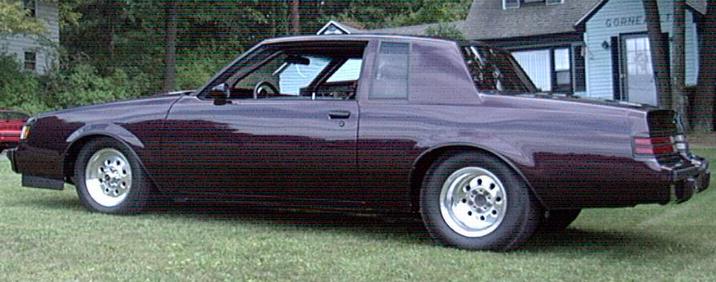

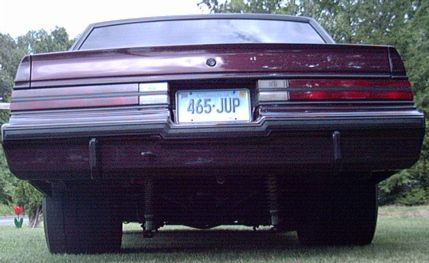

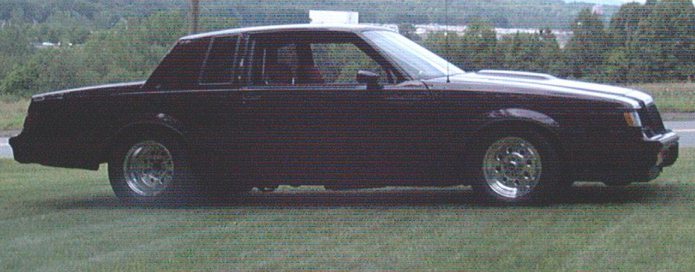

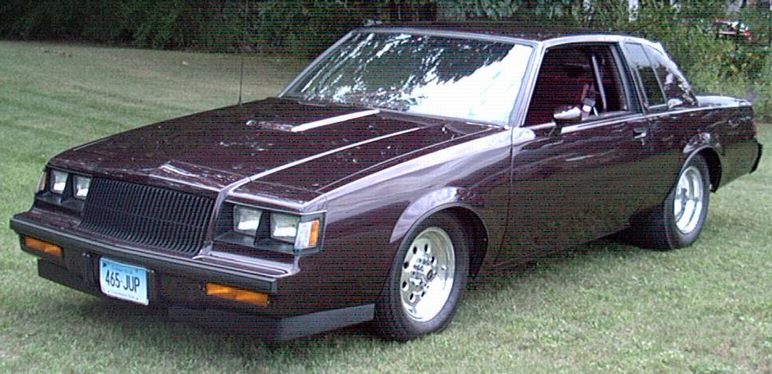

This 1986 T-Type with a Stage II motor is definitely a screamer! As you can see from the pictures, it has a very understated stance, deceptively simple appearance, and great attention to detail. Allan has goals to get it solidly in the 9s and is well on the way to reaching that goal.

The really cool thing is that this car is totally streetable and is driven! Allan's maiden voyage to the track yielded a 10.16 @ 133 MPH spinning through the 60' and running 9-10 A/Fratio(really rich) His next run had a 1.46 short time, but he short shifted from the unexpected hard launch. He should be in the 9s soon!!

Motor

  • 4.1 stage II on center 4.1 block
  • Titanium rods
  • 3.59 stoke crank
  • T-76 ceramic ball bearing turbo with .96 A/R ratio (submitted on Turbocharger picture guide)
  • Modified 4 BBL intake(submitted on Intake picture guide)
  • Hemco upper plenum with 70mm throttle body
  • Stage II aluminum heads flowing over 320 CFM intake, 265 exhaust
  • Comp Cams solid roller cam with 242 duration, 600 lift
  • Milodon gear drive
  • 96# MSD injectors
  • Presion Turbo front mount intercooler
  • ATR headers
  • Electric water pump
  • All power accessories on engine are functional (A/C,Power Steering,etc..)
  • FAST fuel managment
  • Home modified fluid damper for magnetic pickup ring
  • T&D roller rockers
  • Engine built by Allan himself
  • Full exhaust (Borla muffler)
  • Aluminum radiator
  • Modified front oil cover with Duttweiler oil system
  • VERY STREETABLE

Fuel System

  • 15 gallon aluminum cell with saftey foam
  • AN-12 suction line feeding Aeromotive pump
  • AN-10 pressure line to rail
  • AN-8 return line
  • Aeromotive pump controller
  • SX fuel filter

Transmission/Rear End

  • Turbo 400 with TransKing transbrake
  • Blue plate clutches
  • Kolene steels
  • HD sprag
  • 9" Art Carr converter
  • JW Wheel flywheel
  • Transmission built by Allan himself!

Suspension/Tires

  • Weld racing draglight wheels
  • 15x3 front
  • 15x12 rear Hoosier QuickTime Pro tires 28x14.5x15
  • Drop spindles up front with stock springs
  • Polygraphite bushings
  • Mini tubbed
  • Ladder bar suspension with coilovers
  • Square tube frame installed by Allan
  • Full cage profesional installed
  • Ford 9" rear with 3.90 gears and spool

Body

  • Body was stripped and painted with PPG paint and original color(code 79)
  • All factory panels and bumpers retained
  • Painted by good friend
  • Bodywork done by Allan

Performance

  • Allan's maiden voayge yielded a 10.16 @ 133 MPH spinning through the 60 foot mark
  • Looking for 9's soon!!

Allan Gorneault
