Production 1986-1987 3.8 Liter Turbo Crankshaft
Casting number

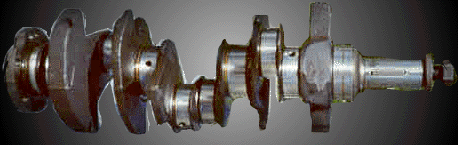

OVERVIEW
Features of Note:
- Split rod throws for the "even fire" firing order (i.e. one power stroke per 120 degrees of crank rotation)
- Good sized main bearing journals
- Fairly big oiling provisions in the journals for rods and mains.
ROD JOURNALS

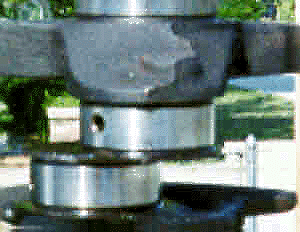

CLOSE UP ROD JOURNALS
Features of Note:
- Split throws
- Tapered counterweight
- Oiling provision
- Rolled filled at the edge of the journal (this is pressed and NOT cut into the journal)

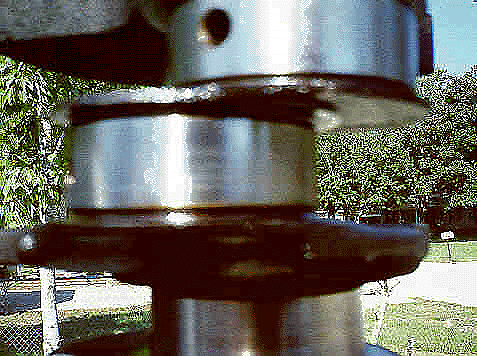

Features of Note:
- A closer view ... look carefully at the rolled fillet
