Production 3.8 Liter Turbo Timing Cover
Casting number


REAR

DETAIL

Features of Note:
  • Water pump openings on the left and right
  • Aftermarket Neoprene front crank seal is installed on this cover
  • Cam Sensor is installed in this view. Notice how it meshes with teh Oil pump shaft
  • Oil pump passages (3 round holes on the lower right)
  • Cast aluminum

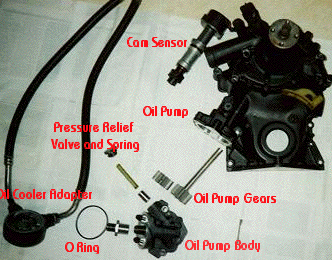

Features of Note:
  • Water Pump is installed already in this view
  • Pressure Relief Valve, Spring and Cap are shown
  • One oil pump gear rides on a dowel cast into the front cover (not visible in this view)
  • Oil cooler adapter uses the O ring for sealing between the oil filter and oil pump body.
